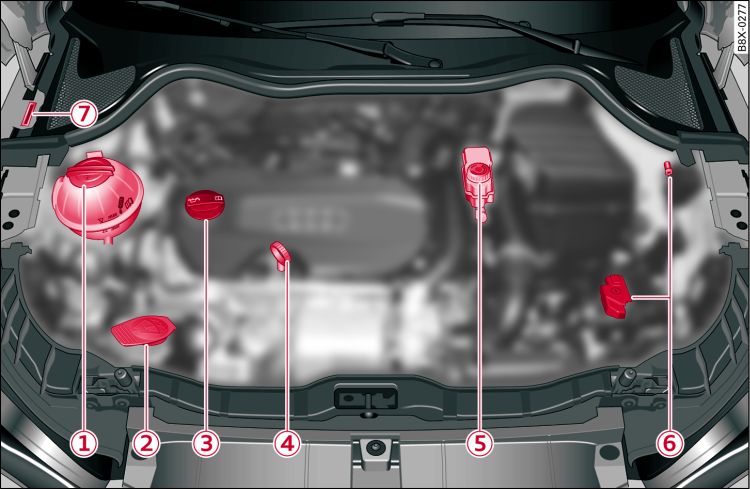

- Fig. 1 Typical locations of fluid containers, engine oil dipstick and engine oil filler cap
- Fig. 2 Vehicle data sticker
- Fig. 3 Open right door: Type plate
Vehicle identification number in the engine compartment
The vehicle identification number is located on the right of the engine compartment (as seen in the direction of travel). The number is stamped on the top side rail Fig. 1 -8-.
On vehicles with driver information system*, you can display the vehicle identification number (chassis no.) in the CAR > Vehicle settings menu.
Type plate
The type plate is located on the A-pillar (right-side) Fig. 3.
Vehicles for certain export countries have no type plate.
Vehicle data sticker
The vehicle data sticker Fig. 2 is under the carpet trim in the luggage compartment in the spare wheel well. One section of the vehicle data sticker is attached to the inside cover of the Service Schedule before the vehicle is handed over.
The sticker lists the following data:
| -1- | Vehicle identification number (chassis number) |
| -2- | Vehicle type / engine power / gearbox type |
| -3- | Engine and gearbox code letters |
| -4- | Paint No. / Interior equipment No. |
| -5- | Optional equipment codes |
| -6- | Fuel consumption and emissions* |
Fuel consumption and emissions*
Information on the vehicle's fuel consumption and emissions is given at the bottom of the vehicle data sticker -6-:
| -A- | Urban cycle consumption (ltr./100 km) |
| -B- | Extra-urban cycle consumption (ltr./100 km) |
| -C- | Combined cycle consumption (ltr./100 km) |
| -D- | Combined CO2 emissions (g/km) |
The specified values were determined in accordance with the required test procedures. The specifications do not refer to an individual vehicle, but serve only as a basis for comparing the different types of vehicles. In addition, the consumption figures achieved during normal driving may differ from the test values, depending in particular on special equipment fitted, vehicle loading, personal driving style, road and traffic conditions, environmental factors and the condition of the car.
