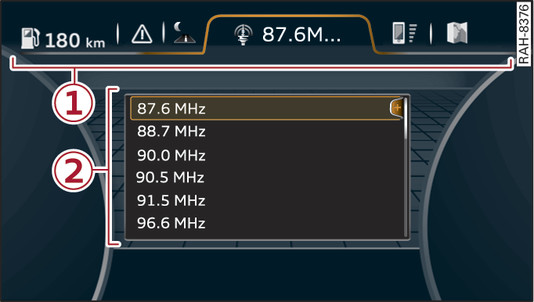

- Fig. 6 View of driver information system

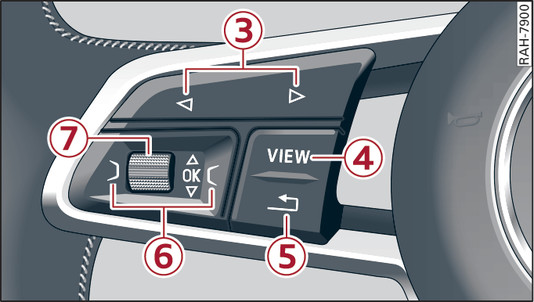

- Fig. 7 How to use multi-function steering wheel
Important: The ignition must be switched on.
-3-
button
button- To switch between tabs: Press the left/right side of the button (e.g. to call up radio functions).
The driver information system shows information -2- in several display tabs -1-.
The equipment installed on your vehicle determines which of the following tabs are available:
-4- VIEW button
To change the view link►.
-5-
button
buttonTo return to the previous function level.
-6- Control buttons
and
and To call up/close the selection menu or options menu link►.
- To select a function in a menu/list: Scroll the left thumbwheel to the desired function (e.g. setting a frequency). The function will be highlighted with a colour surround.
- To confirm your selection: Press the left thumbwheel -7- Fig. 7►. The list item which is currently selected will be highlighted against a colour background.
- To zoom in/out of the map: When a map is shown on the display, scroll the left thumbwheel up/down to make the map scale larger or smaller.
