Power-operated boot lid of the Audi Q7

►Audi Q7 ►Setting off ►Doors and windows ◀Boot lid

The boot lid can be opened and closed automatically.

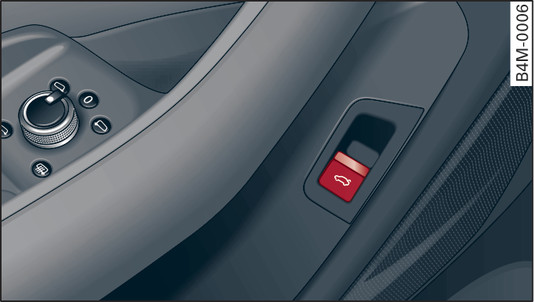

: Fig. 31 Driver s door: Opening boot lid

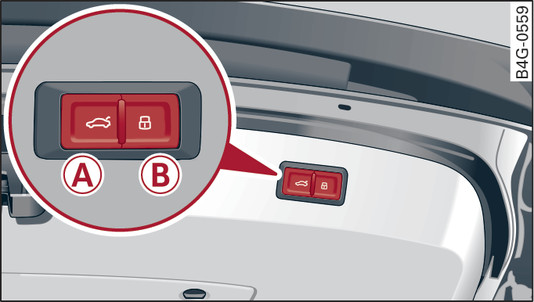

: Fig. 32 Boot lid: -A- close button, -B- lock button (vehicles with convenience key*)

Opening boot lid

Press the

button on the remote control key for at least one second. Or:

Briefly pull the

button in the driver s door Fig. 31►. Or:

Press the release catch on the boot lid.

Closing boot lid

With the ignition switched on, pull and hold the

button in the driver s door until the boot lid is closed ►. Or:

Press the

button inside the boot lid Fig. 32►. The boot lid will move down and lock itself automatically ►. Or:

Press and hold the

button on the remote control key (on vehicles with convenience key^*) until the boot lid closes ►. Make sure to stand clear of the boot lid when doing so. The distance from the rear of the vehicle should be not more than 3 metres. Or:

Press the

button inside the boot lid Fig. 32► (vehicles with convenience key^*). The remote control key should be within a range of about 1.5 metres from the luggage compartment and should not be inside the vehicle. The boot lid will move down and close automatically. The vehicle will be locked ►. Or:

Pull the boot lid gently by the handle on the inside. The boot lid will move down and lock itself automatically ►. Or:

Press the release catch on the boot lid. The boot lid will move down and lock itself automatically ►.

Setting the open position of the boot lid

Open the boot lid as far as desired ►. The boot lid must be opened at least as far as the minimum open setting, otherwise it will not be possible to store the setting.

Press the

button on the inside of the boot lid for at least four seconds to store the desired open position. A visual and audible signal will be given.

To set a higher open position, wait for five seconds and then push the boot lid carefully upwards.

Then press the button

for at least four seconds again to store the desired open position.

The opening/closing of the boot lid will be interrupted immediately if:

You pull/release the switch on the driver s door, or
You press/release the button on the remote control key (on vehicles with convenience key^*), or
You press the button or button (on vehicles with convenience key^*) inside the boot lid.
You press the release catch on the boot lid, or
The boot lid cannot open freely or there is an obstruction.

If you now press the release catch or one of the buttons

(on vehicles with convenience key^*), the boot lid will open or close again (depending on how far open it is).

WARNING

After closing the boot lid, always check that the catch has engaged properly. The boot lid could otherwise open suddenly when the vehicle is moving - this could result in an accident.

On vehicles with an anti-theft alarm system^*, do not leave anyone (especially children) in the car if it is locked from the outside and the safelock mechanism^* is activated: the doors and windows cannot then be opened from the inside link►. Locked doors could delay assistance in an emergency, potentially putting lives at risk.

Always be careful when closing the boot lid. A safety feature is provided (pinch protection), but this may not always be able to prevent serious injuries to yourself or others in all circumstances.

To prevent any risk of injury, always make sure that no one is in the path of the boot lid - in particular around the hinges and the upper and lower edges.

The boot lid must always be completely closed when the vehicle is moving; otherwise toxic exhaust fumes can be drawn into the interior.

If a luggage rack (e.g. a bicycle carrier) is mounted to the boot lid, the boot lid may not open completely or may move downwards by itself due to the added weight. For this reason, make sure you support the boot lid or take the luggage off the carrier before opening the boot lid - risk of injury!

CAUTION

To avoid damage, please take care that the boot lid does not hit the ceiling when opening it inside a garage or car park, etc.

Note

In the infotainment settings, you can select whether the luggage compartment can be opened using the release catch on the boot lid link►.

Acoustic signals will be given while you are closing the boot lid with the remote control key (on vehicles with convenience key^*) or via the button in the driver s door.

When the vehicle is locked, you can unlock the boot lid separately by pressing the button on the remote control key. The boot lid will lock automatically when you close it again.

The boot lid can be closed with the remote control key (on vehicles with convenience key^*) at a distance of up to approximately 3 metres.

If the battery is low, the boot lid can still be opened and closed manually; however, this will require more effort. If you move the boot lid slowly less effort will be required.

When the trailer socket is connected (e.g. to a bicycle rack) you can open the boot lid via the release catch on the handle or by foot gesture (on vehicles with convenience key^*).
