Applies to: vehicles with Audi active lane assist

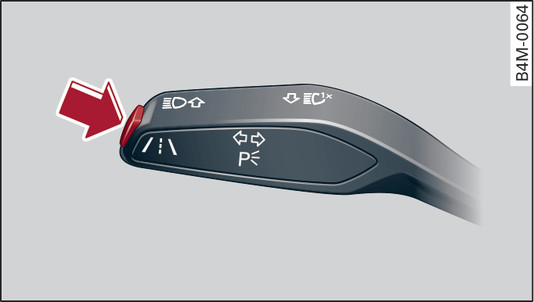

- Fig. 143 Turn signal lever: Button for active lane assist

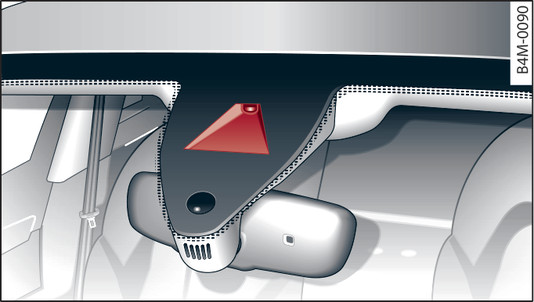

- Fig. 144 Windscreen: Camera window for active lane assist
Press the button Fig. 143► to switch the system on/off. The indicator lamp in the instrument cluster will light up or go out.
Analogue instrument cluster | Audi virtual cockpit/head-up display* | Meaning on corresponding side |
Green line(s) (left or right sides)  | Green line(s) (left or right sides) | The active lane assist is switched on and ready to warn. |
- | Red line (left or right sides)  | The active lane assist warns you before you cross the lane demarcation. In addition, the steering wheel vibrates slightly. |
Yellow line(s) (left or right sides)  | Grey line(s) (left or right sides)  | The active lane assist is switched on but not ready to warn. |
The system may be switched on but not ready to warn due to the following reasons:
- There are no lane markings.
- The system cannot detect the relevant lane markings (e.g. temporary markings for road works or markings obscured by snow, dirt, rain or adverse light).
- The vehicle s speed is below 65 km/h, the speed at which the lane assist system is activated (the threshold may vary in different export markets).
- The lane is narrower than 2.5 m or wider than 4.5 m.
- The bend is too tight.
- You have taken your hands off the steering wheel.
