Switching on / off of the Audi Q7

►Audi Q7 ►Driver assistanc... ►Parking aids ◀Parking system plus

Applies to: vehicles with parking system plus/park assist

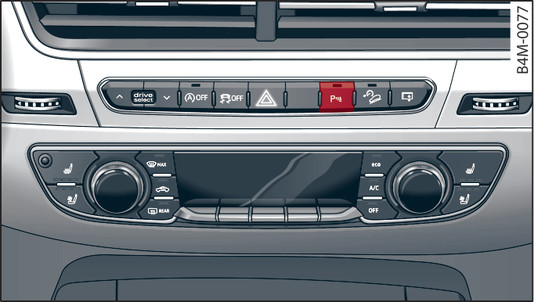

: Fig. 166 Centre console: Button for parking aid

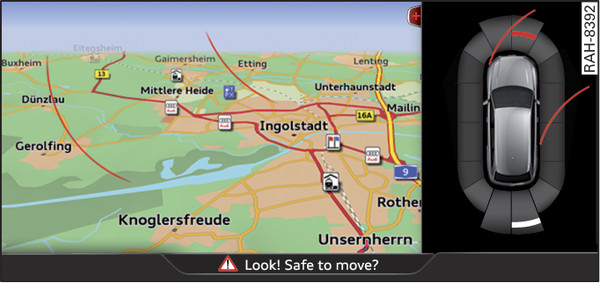

: Fig. 167 Infotainment display: Proximity graphic

Switching on

Engage reverse gear, or

Press the

button in the centre console Fig. 166►. You will hear a brief acknowledgement tone and the LED in the button will light up.

Switching off

Drive forwards faster than 10 km/h, or

Press the

button, or

Switch off the ignition.

Automatic activation1)

The parking aid is activated automatically when the vehicle approaches an obstacle from a distance of approx. 95 cm at speeds below 10 km/h. You will hear the warning beeps when the obstacle is within a distance of approx. 50 cm. If the parking aid is switched off by pressing the

button, it is only reactivated automatically if one of the following conditions has been met:

The vehicle is driven faster than 10 km/h.
The ignition is switched off and on again.
The parking brake is applied and released again.
The selector lever is moved to position P.

Segments in the graphic display

You can estimate the distance to an obstacle by referring to the segments in front of and behind the vehicle or the segments surrounding the vehicle (on vehicles with park assist) Fig. 167►. The red lines^* indicate the anticipated path of the vehicle, depending on the steering wheel angle. A white segment indicates an obstacle that has been detected beyond the path of travel. Red segments represent objects detected within the path of travel. The closer the vehicle gets to the obstacle the closer the segments move towards the vehicle in the graphic. At the latest when the penultimate segment is highlighted the vehicle has reached the danger (collision) zone. Obstacles within the danger (collision) zone are shown in red, even if they are beyond the path of travel. Stop moving immediately ►, ►!
