- Fig. 356 Vehicle data sticker
Chassis number on infotainment system
Select the following on the infotainment system: MENU button > left control button > Servicing & checks > Car information.
Chassis number
The chassis number can be found on the infotainment system, on the vehicle data sticker and behind the windscreen on the driver s side*. The chassis number is also located on the right of the engine compartment underneath a cover on the wing panel.
Type plate
The type plate is located on the right door pillar. Vehicles for certain export countries have no type plate.
Vehicle data sticker

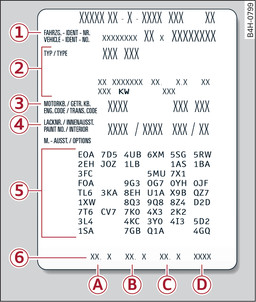

The vehicle data sticker Fig. 356► is located under the floor panel in the luggage compartment. One section of the vehicle data sticker is attached to the inside cover of the Service Schedule before the vehicle is handed over.
The sticker lists the following data:
| -1- | Vehicle identification number (chassis number) |
| -2- | Vehicle type / engine power / gearbox type |
| -3- | Engine and gearbox code letters |
| -4- | Paint No. / Interior equipment No. |
| -5- | Optional equipment codes |
| -6- | Fuel consumption and emissions* |
Fuel consumption and emissions1)
Information on the vehicle s fuel consumption and emissions is given at the bottom of the vehicle data sticker -6-:
| -A- | Urban cycle consumption (ltr./100 km) |
| -B- | Extra-urban cycle consumption (ltr./100 km) |
| -C- | Combined cycle consumption (ltr./100 km) |
| -D- | Combined CO2 emissions (g/km) |
The specified values were determined in accordance with the required test procedures. The figures do not refer to a particular individual vehicle, but are intended solely as a basis for comparison between different types of vehicle. The actual consumption may be different and depends, in particular, on special equipment, vehicle loading, driving style, road and traffic conditions, environmental conditions and the state of the vehicle.
