Securing child seats with ISOFIX of the Audi Q7

►Audi Q7 ►Safety ►Safety first ◀Fitting child seats

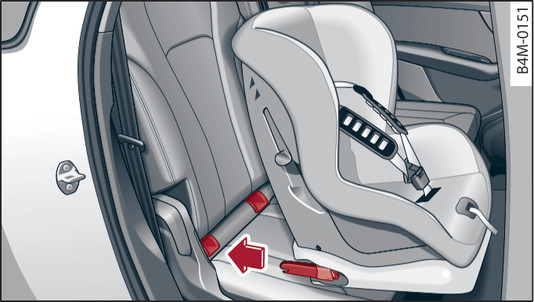

: Fig. 273 Securing child seat with ISOFIX

If you wish to attach an ISOFIX child seat or i-Size child seat to the ISOFIX anchorages in your vehicle, please ensure that it is approved for the seats in your vehicle. The following table link► shows the installation options. The necessary information can be found on the orange label on the child seat.

Remove the covers^* from the two ISOFIX anchorages, or

Remove the padding^* from between the seat cushion and backrest by pulling the loops at the sides of the padding.

Push the mountings on the child seat into the ISOFIX anchorages until they engage audibly Fig. 273►.

Pull on the child seat to check whether both sides have engaged properly.

Second row of seats/third row of seats^*: If possible secure the child seat additionally to the top tether1) anchorage link►.

Child seat	ISOFIX size category	Seats in second row	Seats in third row^*	Front passenger s seat^*
Category 0: up to 10 kg	E	IL	X	IL
Category 0+: up to 13 kg	E	IL	X	IL
	D
	C
Category 1: 9 to 18 kg	D	IL	X	IL
	C		X
	B		IUF
	B1		IUF
	A		X
Category 2: 15 to 25 kg	-	IL	IUF	IL
Category 3: 22 to 36 kg	-	IL	IUF	IL
i-Size child seat	-	i-U	X	X

Size category: The size category specifies the weight range for which the seat is approved. On child seats with universal or semi-universal approval, the size category is specified on the ECE approval label. Each child seat carries a label specifying the weight category.
IL: Seat suitable for the attachment of an ISOFIX child seat with semi-universal approval. Refer to the list of vehicles provided by the child seat manufacturer.
IUF: Seat suitable for the attachment of a forward-facing ISOFIX child seat with universal approval.
i-U: Seat suitable for the attachment of an i-Size child seat with universal approval.
X: Seat not suitable for the attachment of the corresponding child seat.

WARNING

Note the important safety notes ►, ► and the instructions provided by the child seat manufacturer.

Never install a rearward-facing child seat on the front passenger s seat unless the front passenger s airbag has been deactivated – this can result in potentially fatal injuries to the child.

The anchorages in the vehicle are designed only for child seats with ISOFIX. Do not attempt to secure other types of child seat, seat belts or other objects to these anchorages - this could result in serious or possibly fatal injury.
