►Audi Q7 ►Controls and displays ◀Instruments and controls

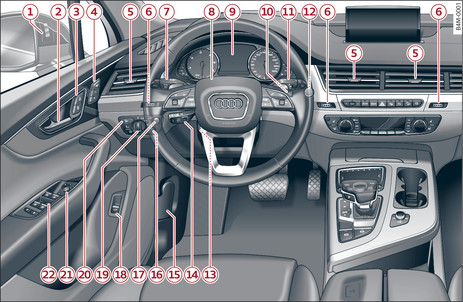

Fig. 1 Front cabin: Left side
Fig. 1 Front cabin: Left side

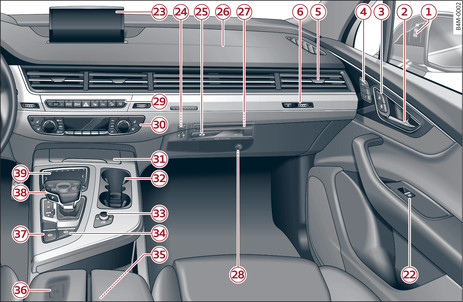

Fig. 2 Front cabin: Right side
Fig. 2 Front cabin: Right side
-1-Side assist warning lamp, exit warning lamp ►
-2-Door handle
-3-Central locking switch ►
-4-Recall buttons ►
-5-Air outlet
-6-Thumbwheel for air outlet and button for wide air outlet, depending on equipment ►
-7-
Control lever for:
-8-
Multi-function steering wheel with:
-9-Instrument cluster ►
-10-Resetting trip recorder ►
-11-Control lever for windscreen wipers and washer ►
-12-START ENGINE STOP button ►
-13-
Steering wheel adjustment, depending on equipment fitted:
-14-
Control lever for:
-15-Bonnet lock release ►
-16-Instrument lighting ►
-17-Button for switching head-up display on/off and adjusting height ►
-18-Switch for unlocking the boot lid ►
-19-Light switch ►
-20-
Switches for:
-21-Electric adjuster for exterior mirrors ►
-22-Electric windows ►
-23-Infotainment display►
-24-Deactivating front passenger s airbag ►
-25-Lockable glove box ►
-26-Front passenger s airbag ►
-27-Drives for CD, DVD and SIM/SD cards ►
-28-Rotary control for refrigerated glove box ►
-29-
Depending on equipment fitted, buttons for:
-30-Air conditioner ►
-31-Ashtray and cigarette lighter
“Ashtrays”►
“Cigarette lighter”►
-32-Cup holder and carrier for car key ►
-33-On/off button for infotainment system ►
-34-Hold assist ►
-35-
Centre armrest with optional equipment:
-36-Starting the engine after a malfunction ►
-37-Electro-mechanical parking brake ►
-38-Selector lever for automatic gearbox ►
-39-Infotainment control console ►
Note
  • Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
  • The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on link►. However, the symbols used to identify the controls are the same.
