Applies to: vehicles with navigation system

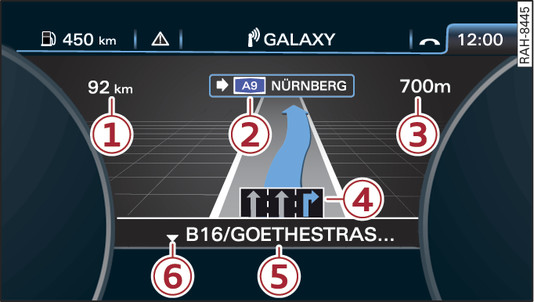

- Fig. 15 Example: Lane change display in instrument cluster (analogue)

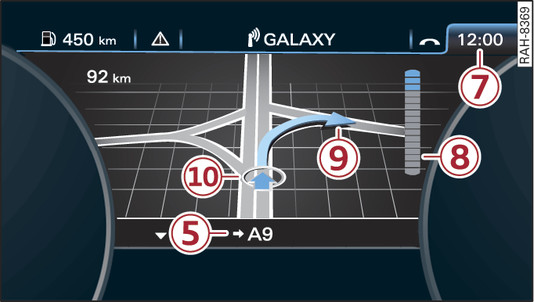

- Fig. 16 Example: Turn-off display in instrument cluster (analogue)
Important: A destination must have been entered link►, the route guidance function must have been started, and the navigation tab must be displayed.
| -1- | Total distance to destination/next stopover |
| -2- | Display of motorway, major road or street before an upcoming turn-off |
| -3- | Distance to turn-off |
| -4- | Lane recommendation |
| -5- | Name of motorway, major road or street you are driving on or about to turn into |
| -6- | Additional information (on-board computer) |
| -7- | Estimated time of arrival |
| -8- | If an arrow is displayed, a bar graph will also appear. The fewer bars are displayed, the shorter the distance to the turn-off point. |
| -9- | Arrow indicating direction of upcoming turn-off |
| -10- | Current vehicle position |
The following functions are available when route guidance is active:
- To have the last navigation cue repeated: Press the
button. - To adjust the volume of the navigation cues: Scroll the right thumbwheel up/down while a navigation cue is being played.
WARNING
The route calculated by the navigation system is a recommendation of how best to reach a destination. Pay attention to traffic lights, no-stopping signs, lane change restrictions, one-way streets, etc.
Note
- Please also observe the notes in the chapter link►.
- An exclamation mark “!” in front of the street name indicates that the navigation data of the MMI system do not contain all the information on this street or street section. Pay attention to traffic rules such as one-way streets or pedestrian zones.
