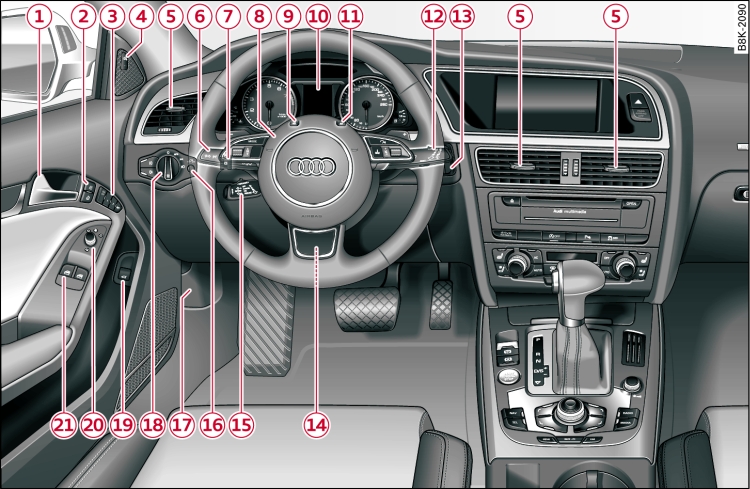

- Fig. 1 Front cabin: Left side

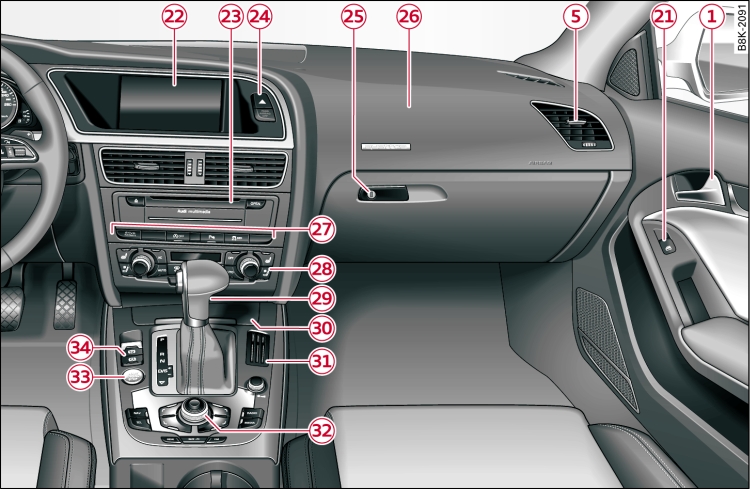

- Fig. 2 Front cabin: Right side
| -1- | Door handle |
| -2- | Central locking switch |
| -3- | Memory function |
| -4- | Button for Audi side assist |
| -5- | Air outlets with thumbwheel |
| -6- |
Control lever for:
|
| -7- | Headlight range control |
| -8- |
Steering wheel with:
|
| -9- | SET button |
| -10- | Instrument cluster |
| -11- | Reset button for trip recorder |
| -12- |
Control lever for:
|
| -13- | Ignition lock |
| -14- | Adjustable steering column (hidden behind steering wheel) |
| -15- |
Depending on equipment fitted:
|
| -16- | Instrument lighting |
| -17- | Bonnet lock release |
| -18- | Light switch |
| -19- | Switch for releasing the boot lid |
| -20- | Electric adjuster for exterior mirrors |
| -21- | Electric windows |
| -22- | Sound system display 1) or MMI display |
| -23- | Sound system or MMI media drives |
| -24- | Hazard warning lights |
| -25- | Glove box |
| -26- | Front passenger's airbag |
| -27- |
Depending on equipment fitted:
|
| -28- | Air conditioner |
| -29- |
Depending on gearbox fitted, gear lever or selector lever for:
|
| -30- | Ashtray with cigarette lighter
|
| -31- | Coin holder |
| -32- |
Depending on equipment fitted:
|
| -33- | START ENGINE STOP button |
| -34- |
Switches for:
|
Note
- Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
- Please refer to the separate operating manual for instructions on using the sound system or Multi Media Interface (MMI).
- The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on Link. However, the symbols used to identify the controls are the same.
1) Depending on the equipment fitted in your vehicle the display screen is either monochrome or multi-coloured. As the two displays are more or less identical this Owner's Manual uses the multi-coloured displays for illustration purposes. Certain settings in the CAR menu cannot be configured on the chorus sound system.
